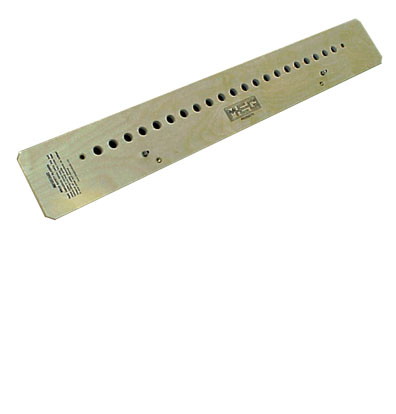

1/2" Baltic birch plywood tool body with brass inserts to accept threaded stop pins, (user provides clamping) ~ furnished with two stop pins and indexing rod for ¼" inch shelf pins (5mm indexing rod  $9.00 ~ sold separately)

$45.00 (available in 32mm and one inch formats)

32mm - European     produces a line of 21 holes 32mm on center, an index hole at either end of the guide allows extension of the line - the inset of the line from the cabinet edge may be set at 37mm or 57mm (two stop pin locations are provided)

One inch - traditional     produces a line of 25 holes one inch on center, an index hole at either end of the guide allows extension of the line - the inset of the line from the cabinet edge can be set at one inch or two inches (two stop pin locations are provided)

go here to learn more about how the guide is used:

system holes

shelf pin holes

basic boring guide
