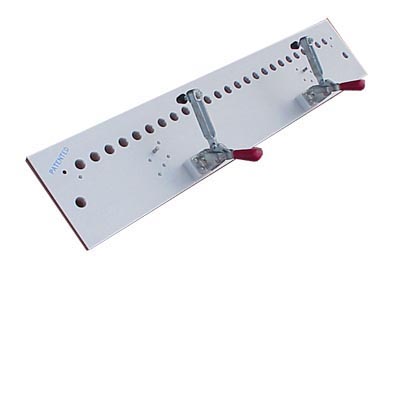

meg products pro-bore
3/8" anodized 6061 aluminum tool body, De-Sta-Co® toggle clamps ~ furnished with stop pins and indexing rod for ¼" and 5mm shelf pins$269.00 (available in 32mm and one inch formats)
32mm - European produces a line of 25 holes 32mm on center, an index hole at either end of the guide allows extension of the line - the inset of the line from the cabinet edge may be set at 37mm or varied in 10mm increments (six stop pin locations are provided)
One inch - traditional produces a line of 29 holes one inch on center, an index hole at either end of the guide allows extension of the line - the inset of the line from the cabinet edge can be set at one inch of varied in one forth inch increments (twelve stop pin locations are provided)
note: the guide may be reversed, clamps lifted and holes bored in the center of a wide panel
go here to learn more about how the guide is used:
system holes shelf pin holes basic boring guide
